Adrian Martinez developed a 3D-printable model of the Heydar Aliyev Center. The 1:1000 scale replica captures the parametric curves of Zaha Hadid's landmark structure. Martinez modeled the entire design in Rhino. This systematic process converts complex architectural surfaces into a physical desktop print. The project demonstrates the utility of desktop fabrication in studying parametric forms.

Reconstructing this landmark geometry presents significant FDM challenges. Overhangs require careful path planning to avoid print failure. Martinez resolved these parameters by dividing the shell into support-free printing zones. The physical output features a stark white finish. This material choice highlights the dynamic play of shadow. Every structural fold acts as a continuous wave. This visual rhythm guides the toolpath along clean geometric lines. The print alignment reveals a fluid transition from building to ground. Each layer showcases the mathematical precision of the digital curves.

Simulating Hadid's Curves in the Heydar Aliyev Center

The white PLA filament mimics the smooth concrete of the physical Baku site. High-contrast lighting reveals the subtle layer lines. These lines function like the structural joints of the actual building skin. This 1:1000 scale replica serves as a great educational tool. Designers can inspect the spatial complexity of the Heydar Aliyev Center from multiple angles. The monochrome palette emphasizes form and contour over decorative detail. By omitting texture, the model focuses attention entirely on spatial volume. The physical artifact allows for tactile analysis of parametric geometry.

Desktop fabrication is gaining momentum in design education. Physical models translate digital vectors into tactile form. Martinez's disciplined work honors Hadid's structural legacy. The model avoids traditional columns and vertical walls. This project offers a practical study in toolpath translation. Ultimately, the Heydar Aliyev Center model proves the value of physical parametric study. It opens new avenues for architects to analyze geometric complexity at scale.

See the full project by Adrian Martinez on Printables.

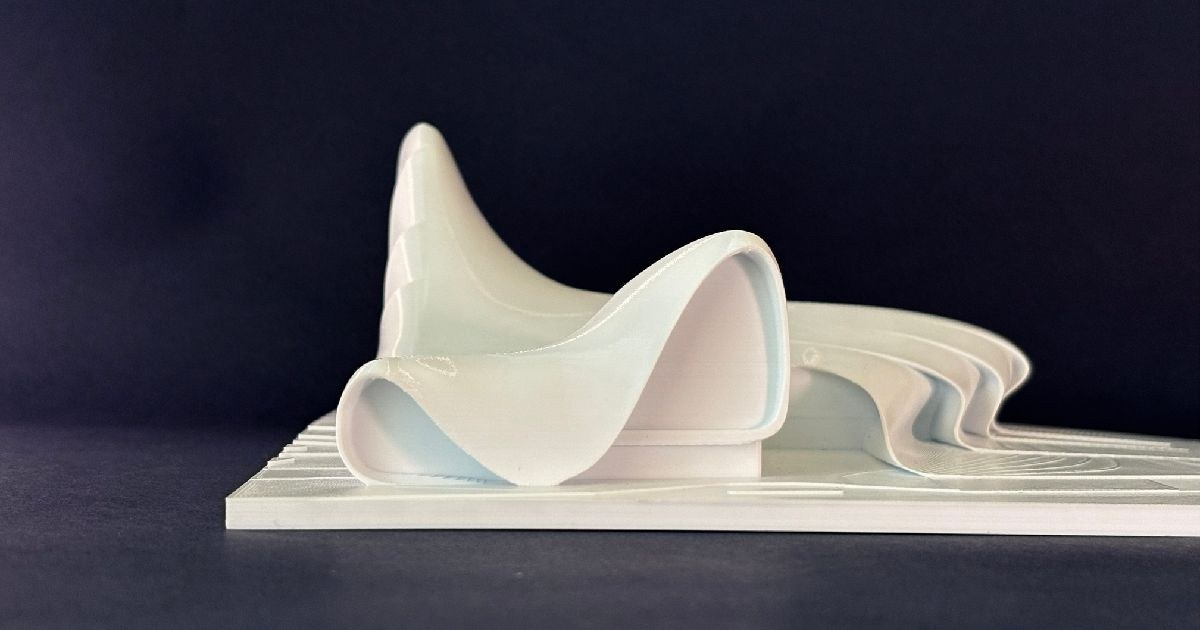

Zaha Hadid 3D print model Heydar Aliyev Center scale model by Adrian Martinez
